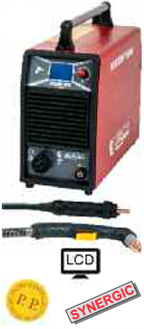

Three-phase plasma cutter to cut metal. The device is characterized by a compact, lightweight design. The device itself is simple to use. The absence of a special start, this device can be safely used alongside computers, medical equipment or other devices sensitive to high frequencies. It comes with a 6 meter torch (P35) and a ground wire. MAIN FEATURES - Synergic control with LCD display - Pilot Arc, to cut painted or coated metals. - No high frequency start - The cutting current is not affected by the distance between the torch and the workpiece or the cutting speed - Security on the torch - Electronic control of the cutting current - Electronically controlled cutting parameters and functions - Compressed air flow control - Thermostatic protection

Voltage	3 x 230V 50-60Hz 3 x 400V 50-60 Hz
Power	50% 13,9 kVA - 60% 11,3 kVA - 100% 10,1kVA 60% 16,6 kVA - 100% 14,3 kVA
MIN-MAX current	20 - 85 A 20 - 105 A
Duty Cycle	50% 85 A - 60% 75 A - 100% 65 A 60% 105 A - 100% 90 A
Gaspressure	5,7 - 5,8 bar
Gasflow	250 l/min
Cutting depth	50 mm
Protection	IP23
Constructionnorms	EN 60974 – 1 / EN 60974 - 7 / EN 60974 - 10
Dimensions	220x540x460h mm
Weight	25 kg
